Crawler Transporters
Rated 1500kg Max 4 Ton Mini Tracked Dumper
1300-6: Rated 1500kg for reliable daily operation, max payload up to 4 tons (4000kg) in short heavy hauls. Robust rubber tracks conquer mud, steep slopes, orchards, farms & construction sites. Diesel/electric options, hydraulic dump. Powerful compact tracked dumper. Request quote, full specs & demo video now!
PARAMETER
MODEL | 7TY-1500A(1300-5) | GEARBOX | Ductile Cast lron 210 |
L * W * H | 3350*1550*1500 mm | GEAR SHIFTS | 6 forward, 2 reverse(Hi/Lo) |
CONTAINER DIMENSIONS | 2000*1500*510 mm | SELF-UNLOADING | Hydraulic |
CONTAINER GROUND CLEARANCE | 600mm | STARTING METHOD | Electric Start |
RATED LOAD CAPACITY | 1500kg | CLUTCH TYPE | Lever-operated Clutch |
MAX LOAD CAPACITY | 4 ton | STEERING TYPE | Brake Steering |
MACHINE WEIGHT | 1.5 Ton | LOAD WHEEL | Steel 6*180 |
MIN TURNING RADIUS | 2 m | TRACK SPECIFICATIONS | 320*90*56 mm |
TRACK WIDTH | 136cm | TRACK MATERIAL | Engineering Rubber Track |
ENGINE MODEL | CF40M | |

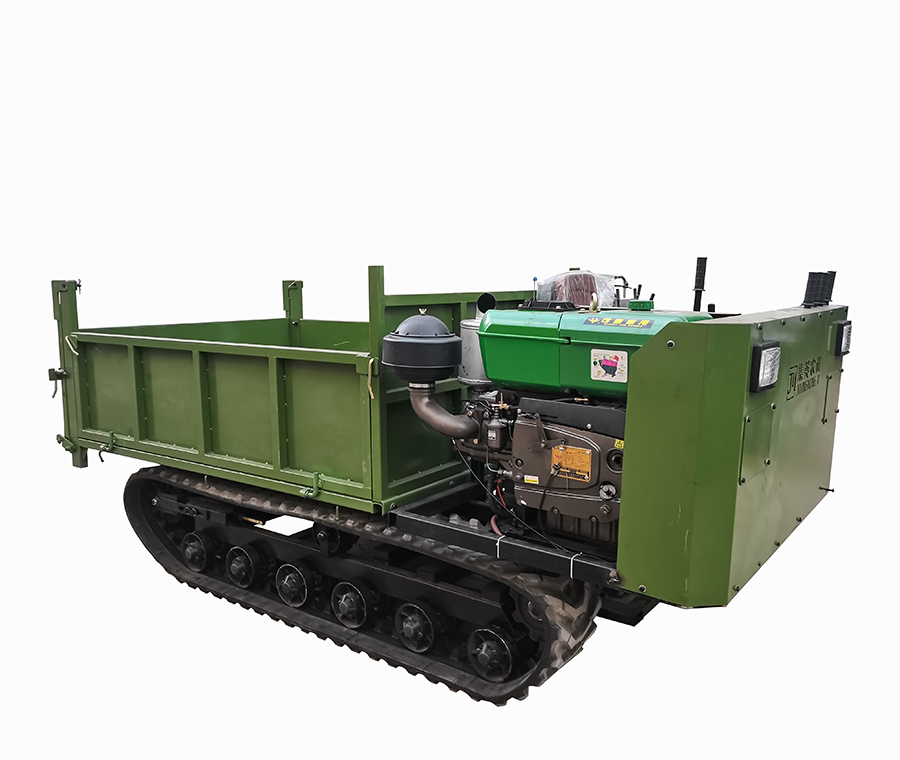

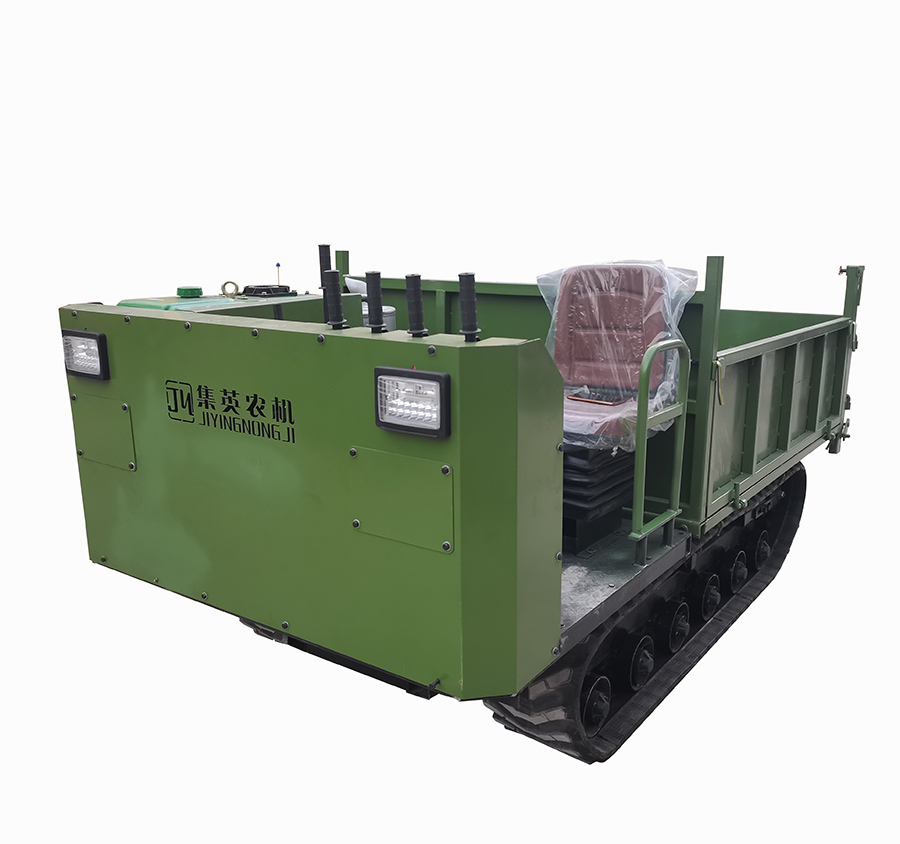

Upgraded Heavy-Duty Crawler Transporter 1300-6 | 1.5 Ton Rated – 4 Ton Max Payload
The Crawler Transporter 1300-6 is built for demanding jobs where higher capacity meets tough terrain. Featuring a safe rated payload of 1500kg for continuous, everyday use and a formidable maximum capacity of 4000kg in short-distance overload scenarios, this mid-size tracked dumper delivers superior performance over standard 1-ton models and wheeled alternatives.
Key Features – Model 1300-6:
- Enhanced rubber tracks with low ground pressure for excellent traction in mud, sand, wet/soft soil, 30°+ inclines & rugged paths
- High-torque diesel engine (electric power option available) ensuring strong pulling power & efficiency
- Hydraulic self-dumping skip/box with multi-directional tipping capability
- Optimized compact design with excellent maneuverability – single-operator control
- Ideal applications: large-scale orchards (fruit crates/fertilizer bulk transport), farms, landscaping projects, construction material handling, greenhouse substrate bulk moving, small mining support & waste management
Why Upgrade to 1300-6?
- 50% higher rated capacity than 1000kg models for increased daily productivity
- Impressive 4-ton max overload tolerance for emergency/heavy short hauls
- Better stability & safety on slopes and uneven ground compared to wheel dumpers
- More agile and fuel-efficient than full-size haulers in confined or soft-terrain sites
Choose the 1300-6 to boost efficiency in heavy-duty material transport.
