Crawler Transporters

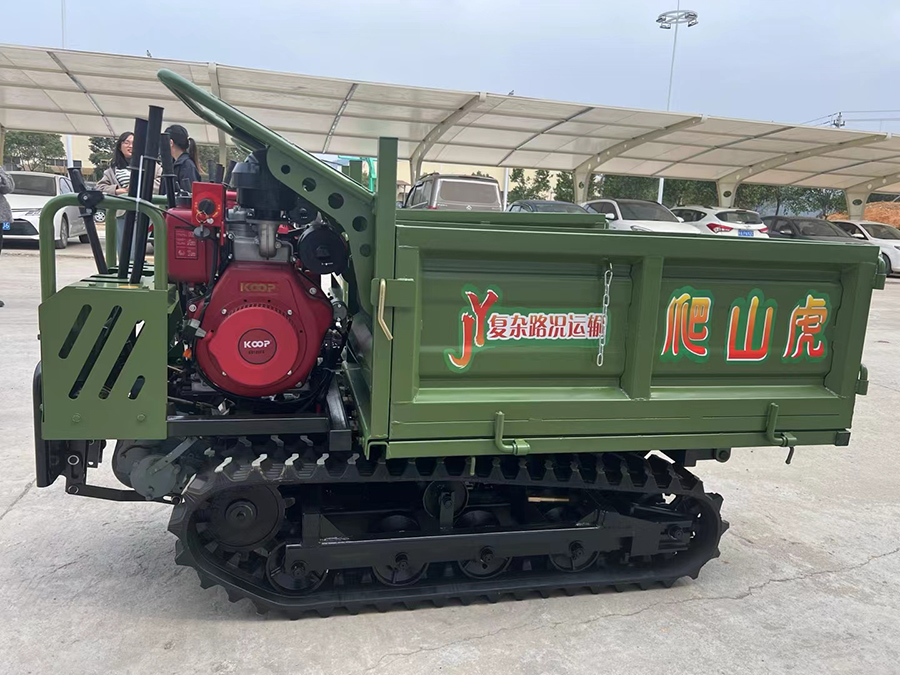

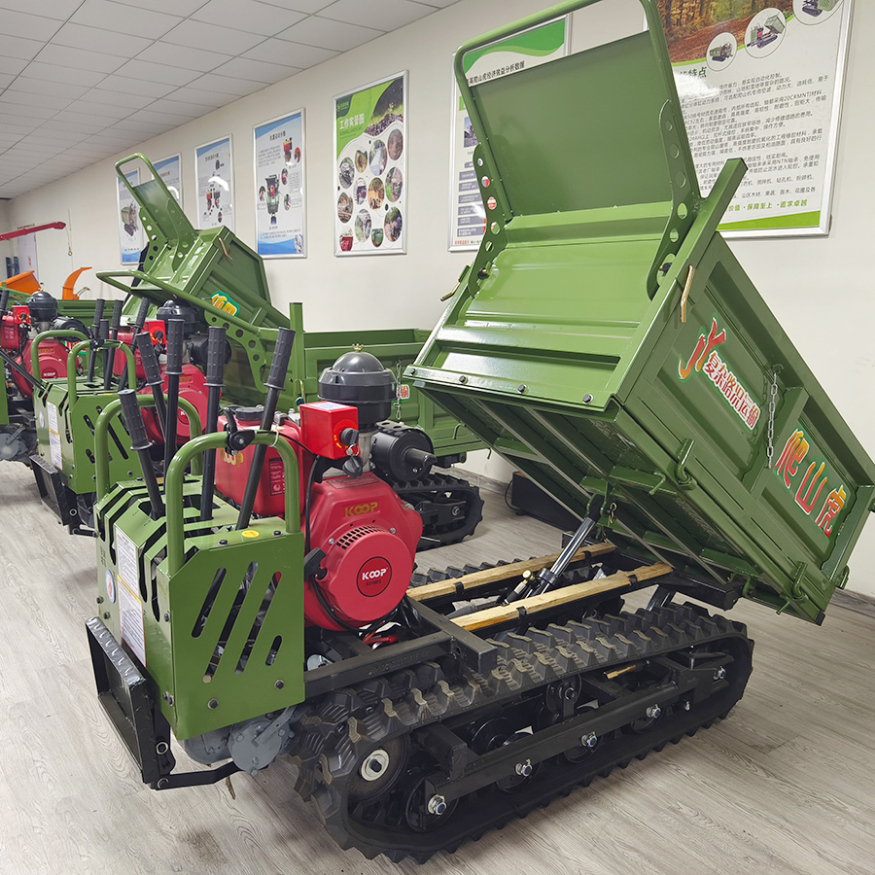

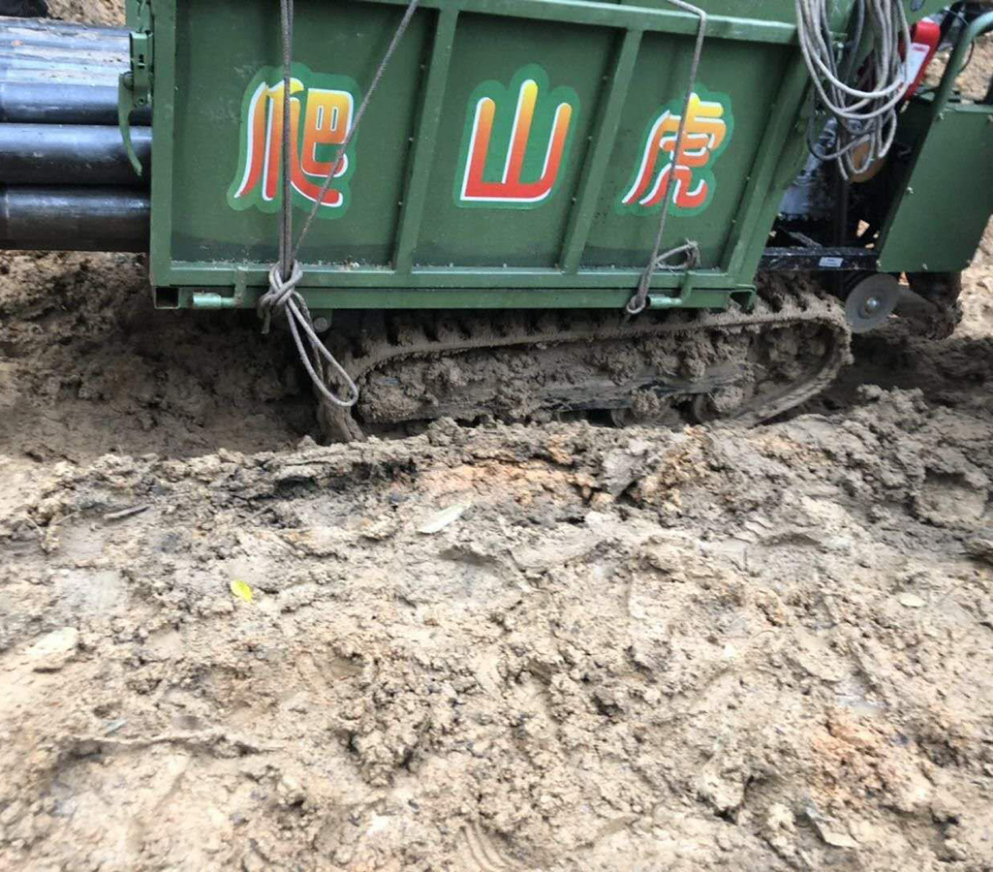

500KG Mini Crawler Dumper
(700-5)The 500KG Mini Crawler Transporter is the ideal compact upgrade for small-scale hilly operations! Rated at 500kg load, powered by a reliable diesel/gasoline engine,with hydraulic tipping and durable rubber tracks for low ground pressure and excellent traction on steep slopes up to 45°. Perfect for Southeast Asia orchards (palm/fruit transport), African smallholder farms (affordable, low-maintenance), and global dealers seeking versatile tracked dumpers. Features narrow design for tight paths, easy operation, and customizable options like remote control. High-quality China export machinery – durable, efficient, and ready for worldwide shipping!
Specifications
- Training Duration
- 3 days
- Group Size
- 30-80 people
- Training Mode
- Theory + Practical exercises
PARAMETER
MODEL | 7TY-500C(700-5) | GEARBOX | Ductile Cast lron 130 |
L * W * H | 2100*850*1250 mm | GEAR SHIFTS | 3 forward, 1 reverse |
CONTAINER DIMENSIONS | 1300*800*490 mm | SELF-UNLOADING | Hydraulic |
CONTAINER GROUND CLEARANCE | 425 mm | STARTING METHOD | Electric Start |
RATED LOAD CAPACITY | 500kg | CLUTCH TYPE | Lever-operated Clutch |
MAX LOAD CAPACITY | 1 ton | STEERING TYPE | Brake Steering |
MACHINE WEIGHT | 530 kg | LOAD WHEEL | Steel 4*150 |
MIN TURNING RADIUS | 1 m | TRACK SPECIFICATIONS | 200*72*38 mm |
TRACK WIDTH | 70cm | TRACK MATERIAL | Engineering Rubber Track |
ENGINE MODEL | Diesel 188 | | |
