Crawler Transporter with Lifting Dump Bed

(1000-8)Rated 900kg for daily use, max 2 ton (2000kg) payload in short hauls. High-lift skip for elevated unloading into trucks/containers. Rubber tracks excel in mud, slopes, orchards, farms & construction. Diesel/electric options. Compact high-tip mini tracked dumper. Get quote & demo video now!

Contact Us

PARAMETER


MODEL
7TY-900A(1000-8)
GEARBOX
Ductile Cast lron 180
L * W * H
3200*1380*2000 mm
GEAR SHIFTS
3 forward, 1 reverse
CONTAINER DIMENSIONS
1980*1380*810 mm
SELF-UNLOADING
Hydraulic
CONTAINER GROUND CLEARANCE
570 mm
STARTING METHOD
Electric Start
RATED LOAD CAPACITY
900 kg
CLUTCH TYPE
Lever-operated Clutch
MAX LOAD CAPACITY
2 tons
STEERING TYPE
Brake Steering
MACHINE WEIGHT
1187 kg
LOAD WHEEL
Steel 5*180
MIN TURNING RADIUS
1.5 ｍ
TRACK SPECIFICATIONS
300*72*53 mm
TRACK WIDTH
1.1 ｍ
TRACK MATERIAL
Engineering Rubber Track
ENGINE MODEL
Changchai 1105

Crawler Transporter with Elevating / Lifting Dump Bed – Rated Load 900kg | Maximum Capacity 2000kg Mini Tracked Carrier
High-Lift Crawler Transporter | 900kg Rated – 2 Ton Max Payload with Elevating Dump Bed

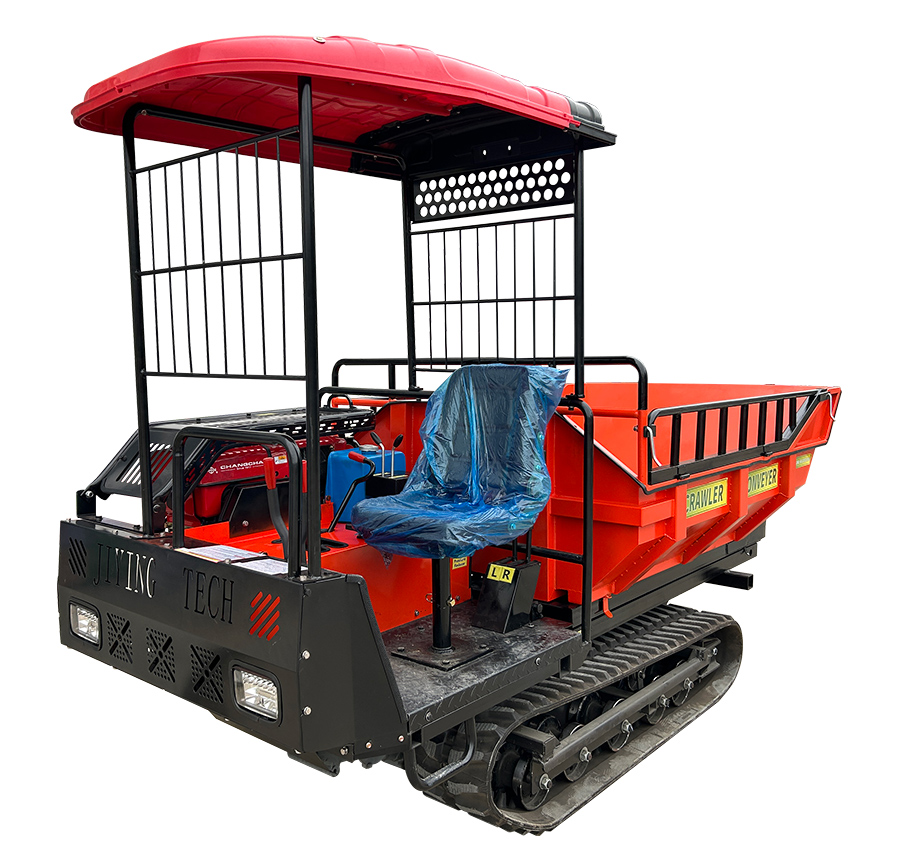

This Crawler Transporter features a hydraulic lifting dump bed (elevating skip) that raises the cargo box to higher discharge heights, making it ideal for loading/unloading into trucks, containers, raised beds, or over obstacles. With a safe rated payload of 900kg for continuous operation and maximum capacity up to 2000kg in short heavy-duty hauls, it combines superior terrain mobility with enhanced unloading versatility.
Key Features:

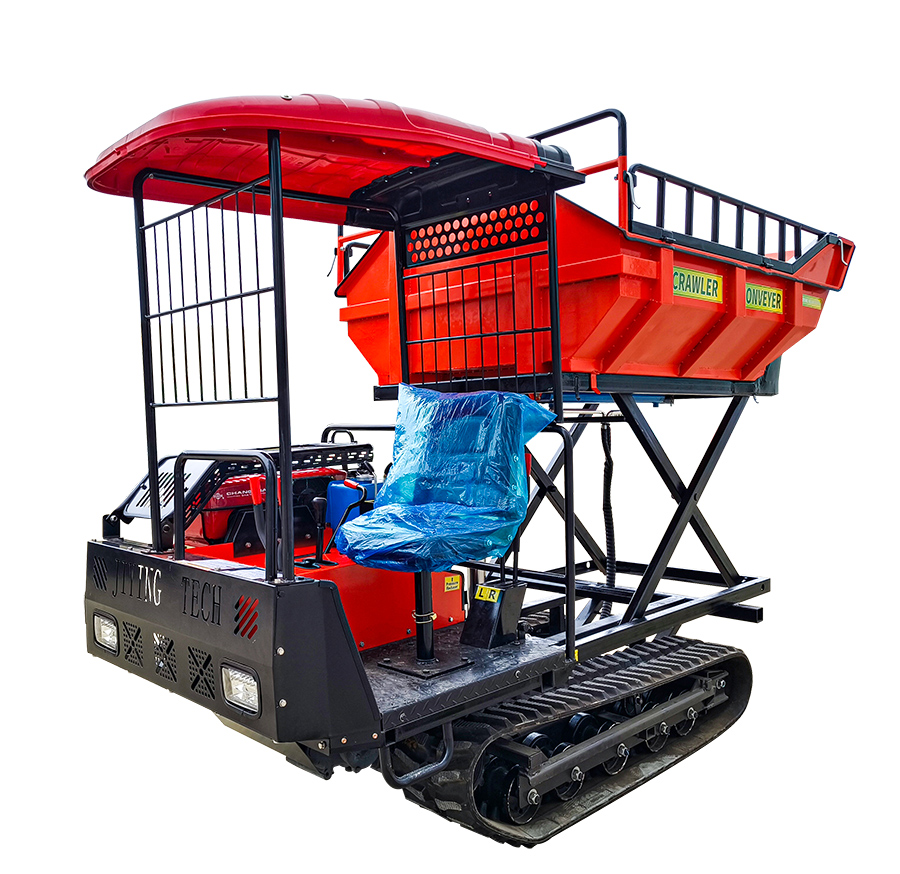

  • Hydraulic elevating dump bed – high-tip discharge for elevated unloading (ideal for trucks, high-sided bins, orchards, greenhouses)
  • Robust rubber tracks with low ground pressure – conquers mud, sand, steep slopes, soft/wet soil & uneven terrain
  • Reliable diesel engine (electric option available) for strong performance & efficiency
  • Compact design with tight turning radius – single-operator control
  • Versatile for: orchards (high-position fruit/fertilizer delivery), landscaping, construction (loading into skips/trucks), farms, greenhouse substrate handling, waste management
Why This Model?
  • High-lift function saves time & labor vs. standard dumpers
  • 2-ton max overload tolerance for occasional heavy tasks
  • Safer & more stable on challenging ground than wheeled high-tip dumpers
  • More agile in confined/soft areas than larger machines
Boost your efficiency with this versatile lifting crawler transporter – perfect for elevated unloading needs.
