Articulated chassis transporter
Articulated 4-Wheel Drive Mini Dumper
(JS-MSE1500)Python-Style Articulated 4x4 Wheel Transporter: Snake-like flexible chassis with 4 wheels and full 4WD drive. No tracks – conquers steep slopes, mud, rocks & swamps better than rigid vehicles. Ideal for orchards, farms, mining & construction. Diesel power, high mobility. Get quote & demo video for this articulated mini wheel dumper!
PARAMETER
MODEL | JS-MSE1500 | TIRE | 600-16 Aulice Tyre * 6 |
LFUSELAGE WIDTH | 1.45m | BRAKING | Front: Machanical Rear: Air Brakes |
FUSELAGE LENGHT | 4.56m | DUMP MODE | Double Lift Hydraulic Unload |
CONTAINER DIMENSION(Ext) | 1980*1470*800mm | GEAR | Eight Forward, Two Reverse |
ENGINE | YUNNEI490/64HP | STEERING | Full hydraulic cylinder fold type |
GEAR BOX | 130 with auxiliary box | WHEELBASE | Front and Rear Wheel Center 2.6m |
TRANSFER CASE | lx-16 | COOLING | Antifreeze |
MAX.LOAD LIMIT | 4 Tons | TOTAL WEIGHT | 2 Tons |
TDRIVE MODE | 4wd, Front Drive, Rear drive | MIN. PASSING | 1.6m |
DRIVE AXLE | 130 with Front and Rear Speed locks | |
Python-Style Articulated 4x4 Wheel Transporter – 4-Wheel Configuration, No Tracks, Heavy-Duty Mini Carrier
Python-Style Articulated 4x4 Wheel Transporter | Flexible Chassis with 4 Wheels – No Tracks
This groundbreaking Wheel Transporter features a python-style articulated chassis (snake-like hinged joint between front and rear sections) for exceptional flexibility on highly uneven terrain, powered by full 4x4 / all-wheel drive across its 4 large wheels (no rubber tracks). It delivers superior traction, stability, and adaptability in mud, steep inclines, rocks, swamps, and confined paths without the ground pressure of tracked models.
Key Features:
- Python-style articulated joint – chassis bends/twists to follow contours of rough ground, reducing tipping risk on slopes/rocks
- 4-wheel setup with 4x4 drive – independent power to each wheel for maximum traction & climbing ability (up to 35°+ inclines)
- No tracks design – lower maintenance, higher speed on firm ground, excellent flotation with large low-pressure tires
- High-torque diesel engine for heavy pulling & efficiency (electric variant optional)

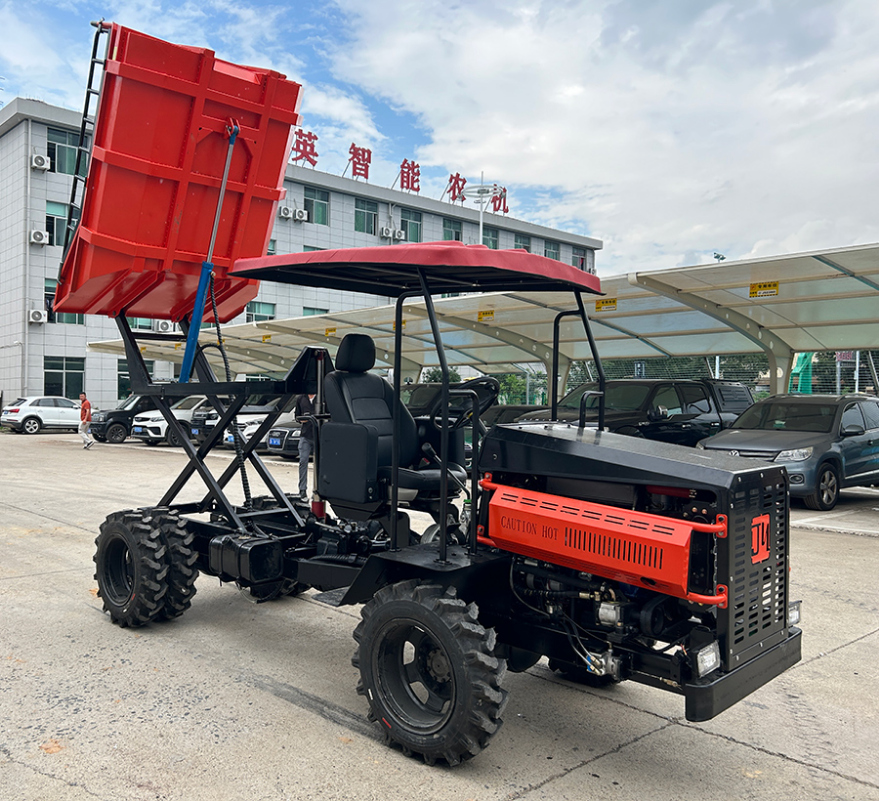

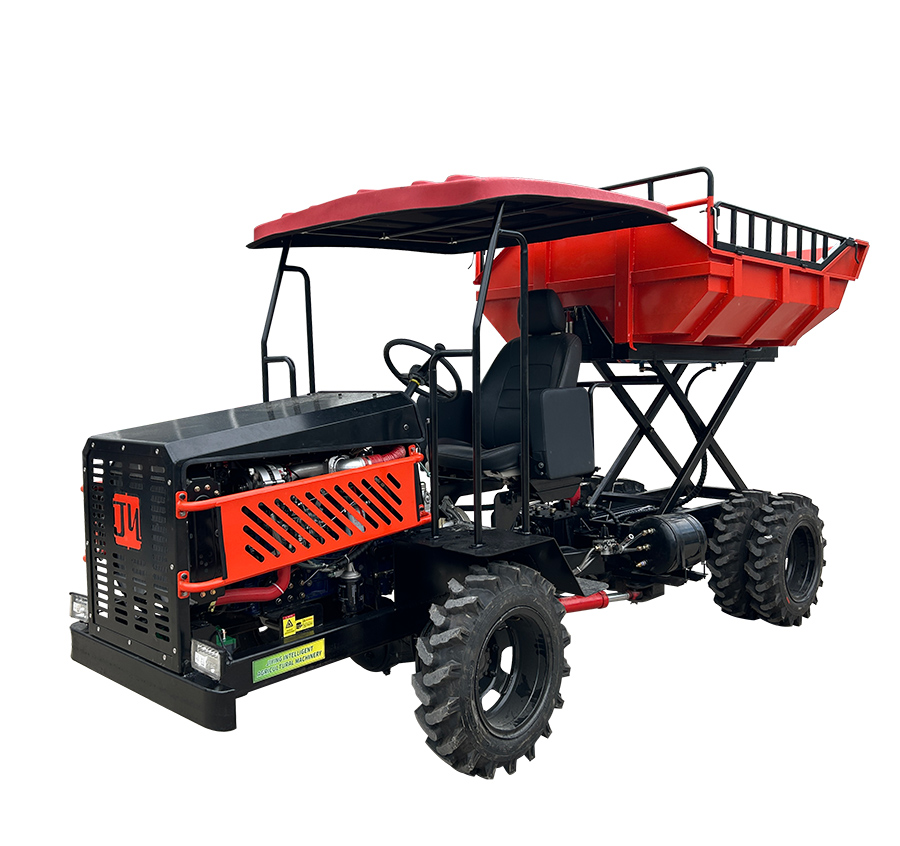

- Versatile dump bed or flatbed options – hydraulic self-dump available
- Perfect for: steep orchards/farms (hillside transport), mining (narrow rocky paths), construction in soft/rugged sites, landscaping & extreme off-road hauling
Why This Articulated 4x4 Wheel Model?
- Articulated flexibility + 4WD outperforms rigid 4x4 vehicles on irregular terrain
- No tracks means easier handling on roads/hard surfaces & reduced soil compaction in sensitive areas
- Better maneuverability in tight spaces than large articulated dump trucks
- Enhanced stability & anti-slip on mud/slopes vs. standard wheel transporters
Dominate challenging terrains with this snake-like, trackless 4x4 articulated transporter – the agile heavy-duty choice.
