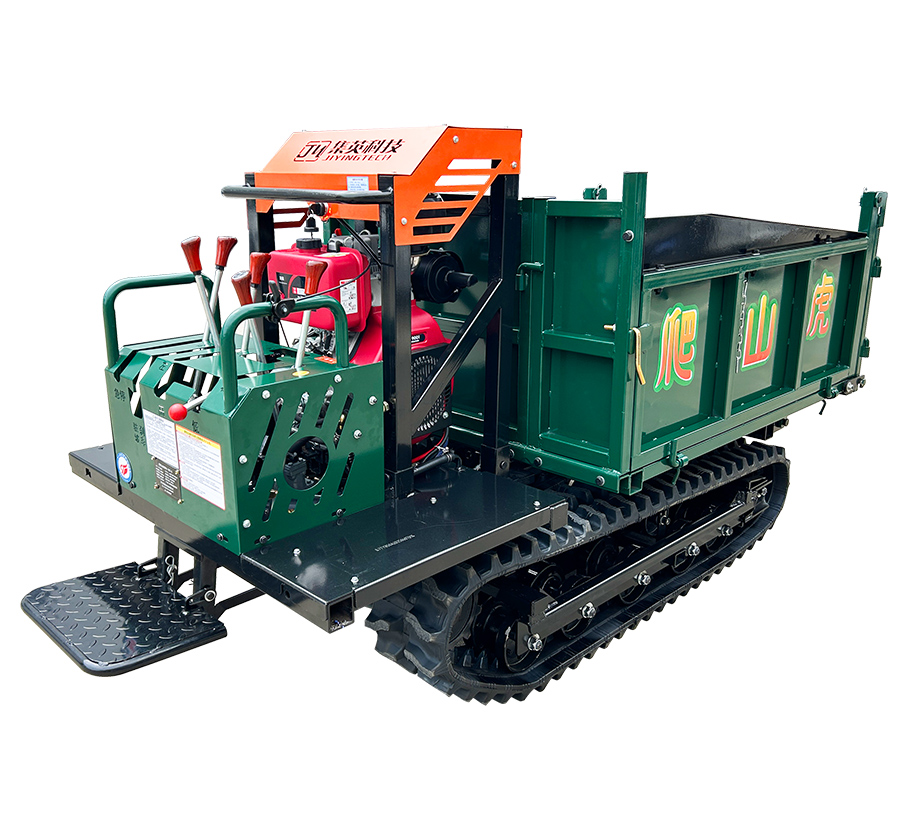

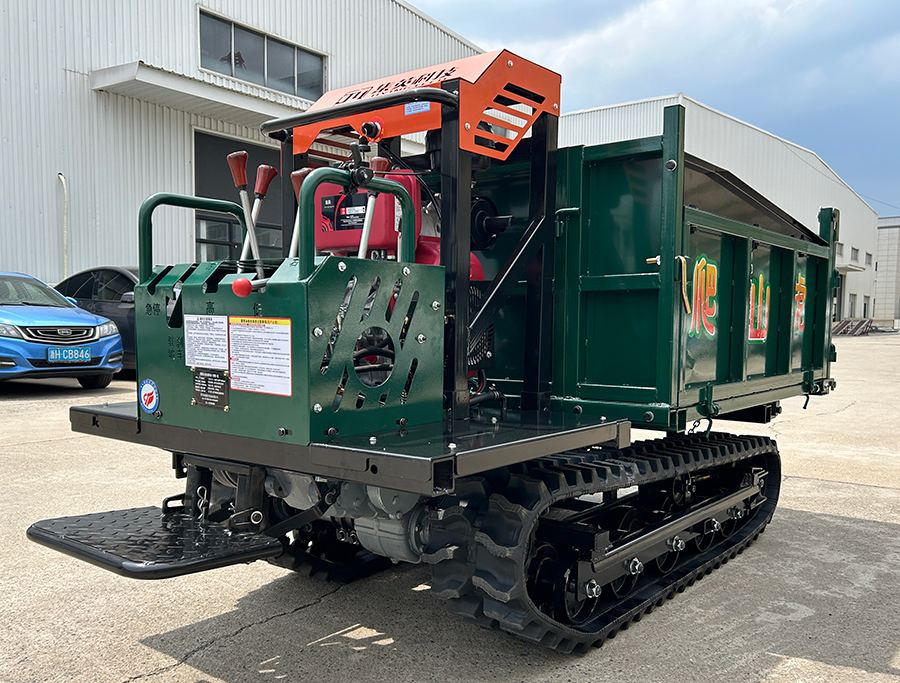

(1100-8)The 850KG Rated / 2 Ton Max Crawler Transporter handles serious heavy loads in tough hilly conditions! Rated 850kg for reliable daily operations (max 2 ton overload on flat/short runs), powered by a powerful diesel engine (12-18HP), with hydraulic tipping and reinforced rubber tracks for superior traction, low ground pressure, and durability on slopes up to 45°. Ideal for Southeast Asia orchards (heavy palm/fruit/fertilizer hauling), African smallholder farms (tough, cost-effective), and global dealers needing high-capacity tracked dumpers. Narrow chassis for tight access, easy maintenance, and customizable options available. Top-tier China export quality – built to last, efficient, and ready for worldwide shipping!
MODEL | 7TY-500C(1100-8) | GEARBOX | Ductile Cast lron 200 |
L * W * H | 2485*1200*1410 mm | GEAR SHIFTS | 6 forward, 2 reverse |
CONTAINER DIMENSIONS | 1530*1200*500 mm | SELF-UNLOADING | Hydraulic |
CONTAINER GROUND CLEARANCE | 530mm | STARTING METHOD | Electric Start |
RATED LOAD CAPACITY | 850kg | CLUTCH TYPE | Lever-operated Clutch |
MAX LOAD CAPACITY | 2 ton | STEERING TYPE | Brake Steering |
MACHINE WEIGHT | 928kg | LOAD WHEEL | Steel 5*180 |
MIN TURNING RADIUS | 1.5 m | TRACK SPECIFICATIONS | 250*72*53 mm |
TRACK WIDTH | 106cm | TRACK MATERIAL | Engineering Rubber Track |
ENGINE MODEL | Fuel-cooled Diesel 1105 | | |
