4WD All-Wheel Steering Farm Transporter with Crab Mode

Four-Wheel Agricultural Transporter with Switchable 4WD/FWD/RWD & All-Wheel Crab Steering – Superior Maneuverability for Narrow Farm Paths

PARAMETER

MODEL	JY-7LY-250-100D	MOTOR	2*1500w
L * W * H	265011401380mm	PASSENGERS	2
EXT.CONTAINER DIMENSION	15001100350mm	BATTERY VOLTAGE	48V/60V
TIRE SIZE	400-10mm	BATTERY TYPE	60100 Iron Lithium Battery
TRAVEL PATH WIDTH	110cm	BATTERY TYPE	6060 Lithium Battery Water Battery
MIN.TURNING RADIUS	1.4m	CHARGING TIME	2h
GROUNDHEIGHT TOCONTAINER	550mm	ENDURANCE	3-4h
MACHINE WEIGHT	490kg	DRIVING MODE	FWD、RWD、4WD
MAX.CARRYING WEIGHT	500kg	GEAR	Three forward, three reverse

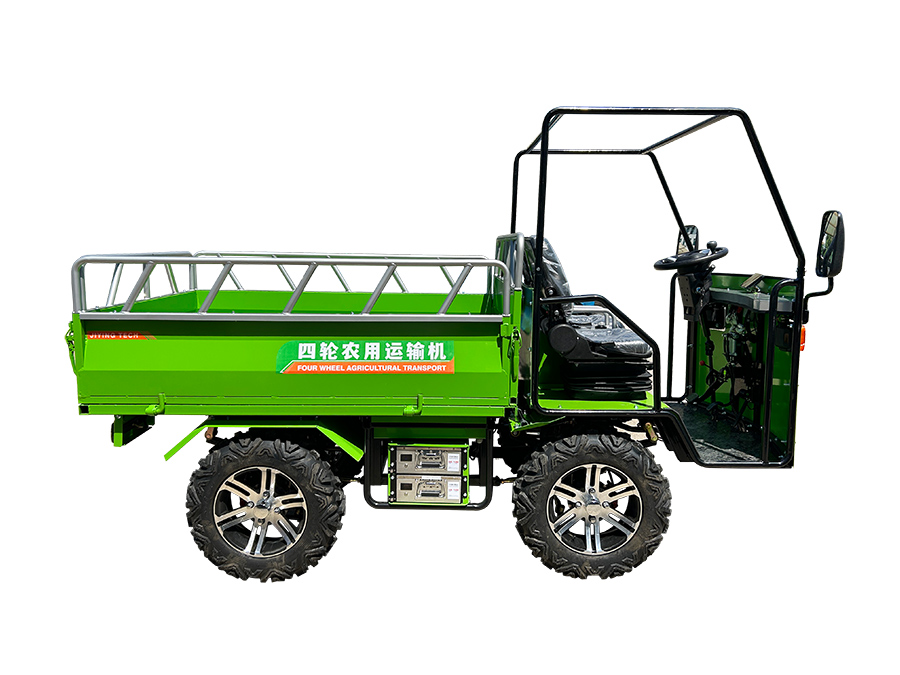

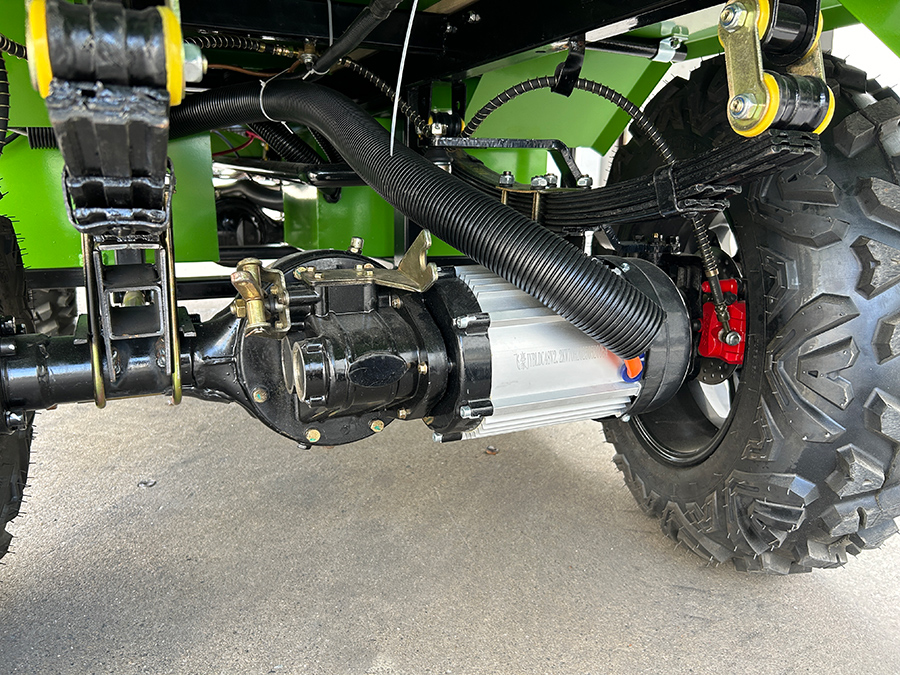

The Four-Wheel Agricultural Transporter is an innovative, high-performance farm utility vehicle engineered for modern agriculture. It features independent motor drives on the front and rear axles, allowing seamless switching between four-wheel drive (4WD), front-wheel drive (FWD), and rear-wheel drive (RWD) modes to optimize traction, efficiency, and energy use across different field conditions.

Both front and rear axles are equipped with steering capability. Building on conventional front-axle steering, a specially designed cross-type linkage system pulls the rear steering arms in perfect symmetry, enabling coordinated all-wheel steering and true crab steering (diagonal movement). This allows the vehicle to move sideways or at an angle without changing orientation — dramatically improving turning radius and navigation in narrow roads, tight orchards, greenhouse rows, muddy trails, or confined farm areas.

Key advantages and features:

Flexible drive modes — Switch between 4WD for maximum traction in wet/soft soil, FWD or RWD for lighter loads or energy savings

All-wheel steering with crab mode — Achieves ultra-tight turns and lateral movement for exceptional maneuverability in restricted spaces

Symmetric steering linkage — Cross-link design ensures precise, synchronized front-rear turning for stability and control

High adaptability — Ideal for paddy fields, orchards, hilly terrain, vegetable greenhouses, material transport, and small-scale farming logistics

Efficient and user-friendly — Low energy consumption, simple controls, reliable performance in challenging rural environments

This advanced transporter serves as a versatile, powerful assistant in precision and smart farming, reducing labor, minimizing crop damage from tight maneuvers, and boosting overall field efficiency.
