4-Wheel Snake Chassis Mini Dumper for Constructioner for Construction

1500-6 Python-style flexible articulated chassis with 4x4 all-wheel drive & 4 rugged wheels (trackless). Built for rough construction sites, mining paths & rocky ground. High stability on slopes, powerful diesel, easy maintenance. Ideal mini articulated dumper for sand/gravel/waste handling. Get specs & video demo!

Contact Us

PARAMETER


MODEL
JY-MS300
TIRE
600-16 Aulice mountain tires x6
BODY WIDTH
1.5 meters
BRAKING
Air brakes with emergency brake system
BODY LENGTH
4.1 meters
DUMP MODE

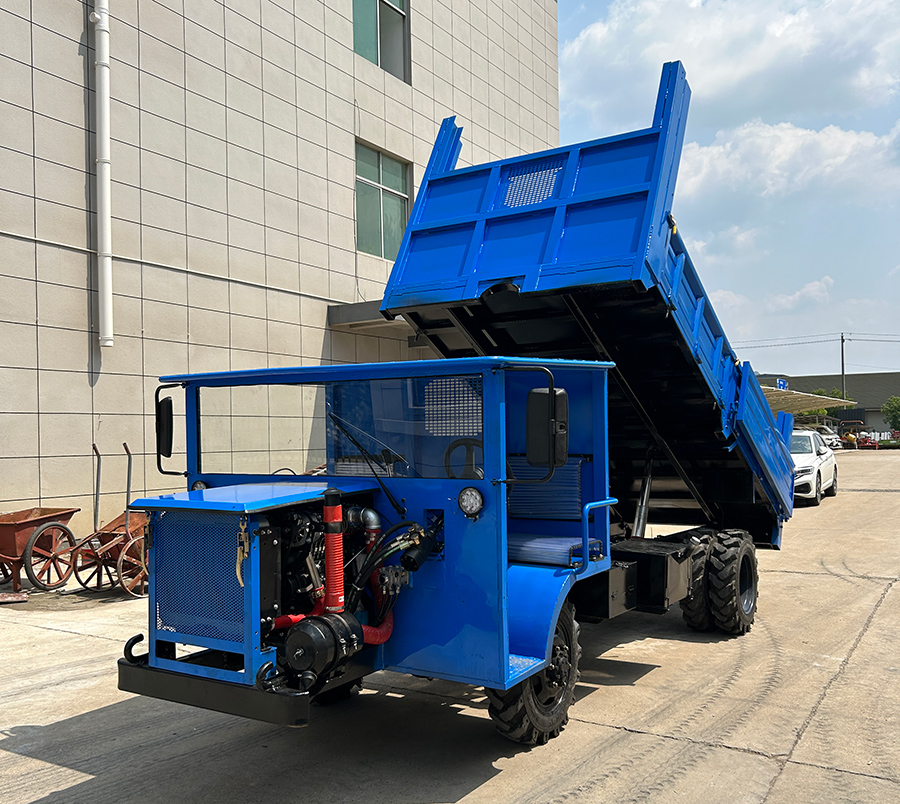

Hydraulic self-dumping, double oil lift
CARGO BOX EXT. DIMENSIONS
2100x1500x500 mm
GEAR
Eight Forward, Two Reverse
ENGINE
KP25MKP1130GM/KP40M
STEERING
Full hydraulic power steerng
TRANSMISSION
130 with auxiliary box
WHEELBASE
2.7 meters
TRANSFER CASE
330 model
COOLING
Antifreeze
MAX.LOAD LIMIT
4 Tons
TOTAL WEIGHT
2 Tons
TDRIVE MODE
4wd, Front Drive, Rear drive
MIN. PASSING
1.6m
DRIVE AXLE
130 with Front and Rear Speed locks

Flex-Artic-1500-6– Heavy-Duty Articulated 4x4 Wheel Transporter for Construction & Mining (No Tracks)
Engineered for demanding jobsites, the 1500-6 uses a snake-like articulated frame to navigate debris, trenches and uneven ground, powered by robust 4x4 drive across four heavy-duty wheels for reliable traction and load stability in construction & mining support.
